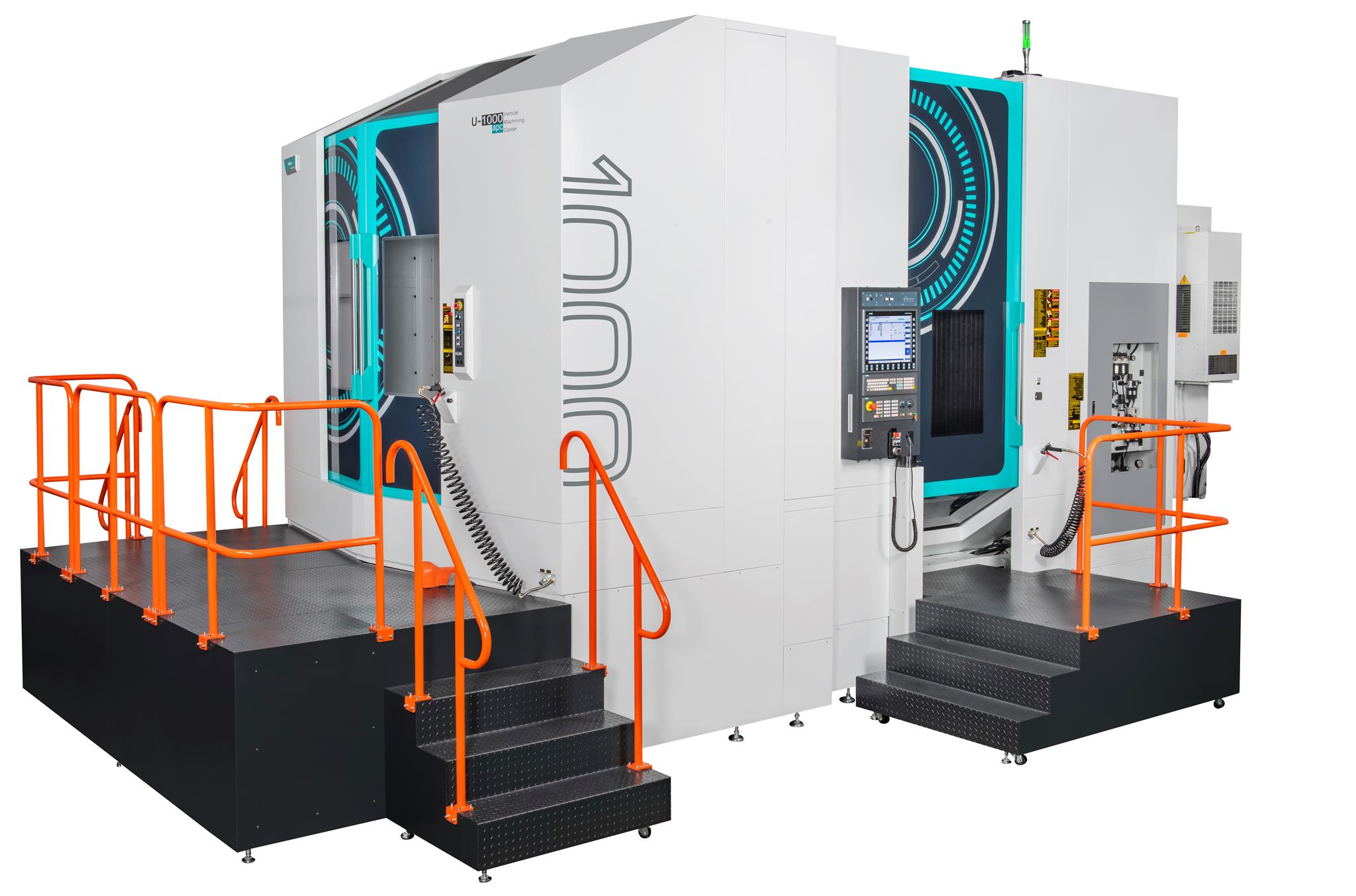

U-1000
(1) B/C axes spindle head
– Swiveling B/C axes spindle head fitted on a 45° interface increase the stability of the structure.
– B axis with scale as standard, CTS is available as option.
(2) Back wall structure
– Column and base use high tensile steel, and the major structure is high quality cast iron.
– The finite element analysis is carried out for the whole machine structure, and the rigidity and modal analysis to ensure the rigid design of the overall structure.
(3) APC with servo driven
– Oversized taper cones for precise positioning accuracy.
– APC system with servo driven ensure the accuracy of repeatability
(4) Chain type ATC system with servo driven
– Special coolant tray design for catching coolant drop from tools.
– ATC system with servo driven, available to adjust tool changing time according to tool weight.
| Item | Unit | U-1000 | |
|---|---|---|---|
| Travel | X axis travel | mm | 1250 |
| Y axis travel | mm | 1250 | |
| Z axis travel | mm | 1000 | |
| B-axis rotation angle | +180°~-30 ° | ||
| C-axis rotation angle | 360° | ||
| Spindle nose to table surface Z axis | mm | 120mm-1240mm(Vertical Spindles=0) / 20mm-1020mm(Horizontal Spindles=0) | |
| Table surface to floor | mm | 1472(±5) | |
| Spindle | Spindle speed | rpm | Built-in spindle 8,000 |
| Spindle taper | 7/24 Taper NO. 50 | ||
| Spindle power | Kw | 19/28 | |
| Feed rate | X-axis rapid traverse | m/min | 50 |
| Y-axis rapid traverse | m/min | 50 | |
| Z-axis rapid traverse | m/min | 50 |
